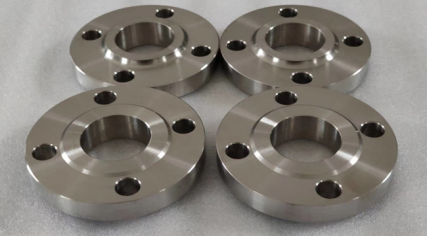

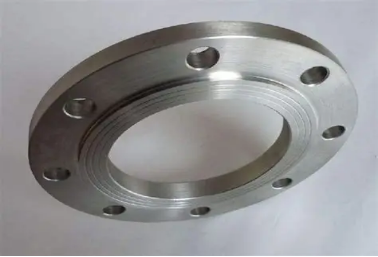

Titanium flanges are pipe-connecting components made of titanium or titanium alloys (e.g., TA1, TA2 pure titanium, and TC4 titanium alloy). They enable detachable connections between pipe ends via bolt fastening and gasket sealing. With a material density of 4.5 g/cm³ (60% lighter than steel), they combine high strength with exceptional performance, including:
Titanium flanges exhibit exceptional stability in highly corrosive media such as seawater and nitric acid, with corrosion resistance significantly surpassing stainless steel. For instance, in a 5% hydrochloric acid solution, titanium's annual corrosion rate is only 1/50 that of stainless steel. Additionally, its surface oxide layer can self-repair when damaged, making it ideal for chemical equipment and marine pipeline connections
Temperature Adaptability
Operational temperature range spans from -250°C to 600°C, with long-term stability at 300°C. Even under cryogenic conditions, titanium retains superior toughness. For example, TC4 titanium alloy (Ti-6Al-4V) increases tensile strength by 20% at -196°C without cold brittleness, making it suitable for LNG equipment and aerospace cryogenic fuel systems
Biocompatibility
Certified under ISO 10993 for medical devices, titanium flanges are non-reactive with human tissues. They are widely used in orthopedic implants (e.g., bone screws, joint prostheses) and dialysis equipment piping, preventing thrombus formation and metal ion leaching
Non-Magnetic Properties
With near-zero magnetic permeability, titanium flanges are immune to electromagnetic interference. This makes them suitable for MRI components, satellite navigation systems, and precision sensors. Notably, their non-magnetic properties remain unchanged during thermal or mechanical processing
A titanium flange system consists of:
Flange Body: Disc/ring structure with bolt holes, made of TA1, TA2, or TC4.
Sealing Elements: Metal or PTFE gaskets to ensure airtightness.
Fasteners: Titanium alloy bolts/nuts, pre-tensioned per ASME PCC-1 standards.
By Connection:
Vessel flanges (high-pressure sealing) and pipe flanges (pipeline compatibility).
By Design:
Integral Flanges: Monolithic for high-pressure/temperature systems.
Weld Neck Flanges: Welded for high-pressure pipelines (e.g., petrochemical reactors).
Lap Joint Flanges: Slidable for easy maintenance (e.g., offshore platforms).
Threaded Flanges: Low-pressure small-diameter pipelines.
Raised Face (RF): Standard for moderate pressure.
Male-Female (MFM): Enhanced vibration resistance (e.g., ship pipelines).
Ring-Type Joint (RTJ): Ultra-high-pressure systems (e.g., nuclear cooling lines).
Forging: Die/free forging improves density; TC4 forged flanges achieve 800 MPa tensile strength.
Machining: CNC precision for sealing surfaces (roughness ≤Ra1.6 μm).
Surface Treatment: Sandblasting, pickling, or anodizing.
Heat Treatment: Stress relief (e.g., TC4 annealed at 500°C).
International: ASME B16.5 (pressure ratings), ASTM B381 (forging).
China: GB/T 9112-2010 (flange types), HG/T 20592 (chemical industry).
Traditional:
Chemical/Oil: PTA plants, hydrogenation reactors.
Marine: Desalination systems, submersible pressure hulls (100 MPa resistance).
Aerospace: Engine fuel lines (20% weight reduction).
Emerging:
Hydrogen Energy: Fuel cell pipelines (hydrogen embrittlement resistance).
3D Printing: Integrated complex flanges (e.g., European hydrogen vehicles).
Smart Flanges: Embedded sensors for real-time monitoring.
State/Process | Features | Applications |
Annealed (M) | Stress-relieved, ductile | General corrosion environments |
Hot-Finished (R) | High strength, forged grain flow | Pressure vessels |
Cold-Finished | Precision dimensions, smooth | Medical devices |
Surface Finish | As-forged (rough), Machined (smooth) | Customized per sealing needs |
