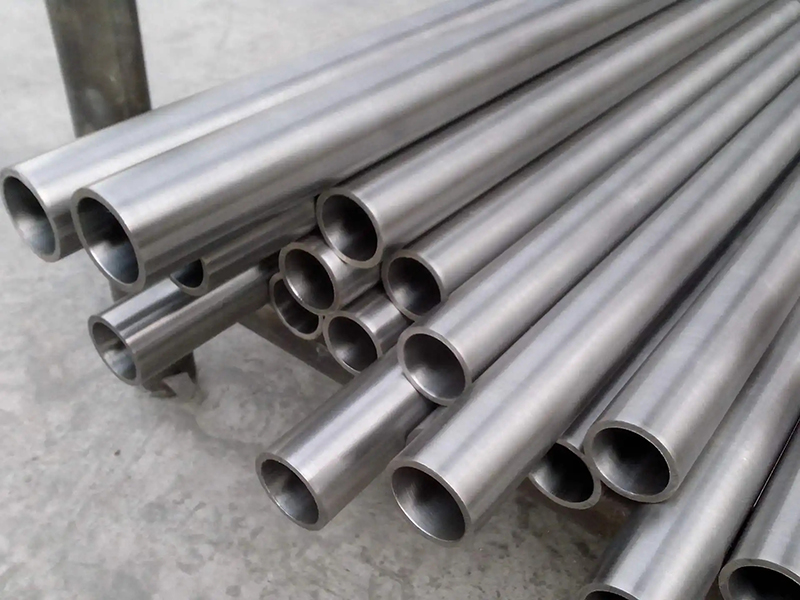

Product details ASTM B338 Titanium Tube:
Titanium tubes are strictly in accordance with American standards: ASTM B338/ASME SB338, ASTM B861/ASME SB861 & DIN17861
GB: GB/T3625, GB/T3624
Titanium tube us label: gr.1 gr.2 gr.3 gr.9 gr.11 gr.12 gr.16 gr.17
Titanium tube domestic brand: TA1 TA2 TA9 TA10 TA18
The outer diameter of titanium tube is 6.0-114mm
Titanium tube wall thickness 0.3-8.0mm
Length of titanium tube ≤18000mm
Titanium tube has light weight, high strength and excellent mechanical properties. It is widely used in heat exchange equipment, such as tube heat exchanger, coil heat exchanger, serpentine tube heat exchanger, condenser, evaporator and pipeline. Many nuclear power industry USES titanium tube as its standard tube
Titanium tubes are subject to two national standards: GB/ t3624-2010 GB/ t3625-2007 ASTM 337 338
Supplied brand: TA0, TA1, TA2, TA9, TA10, bt1-00, bt1-0, Gr1, Gr2
Specifications: diameter phi 4~114mm
Wall thickness delta 0.2 ~ 4.5 mm
Within 15 meters
I. Reference standards
1. GB 228 metal tensile test method
2. GB 224 metal tube hydraulic test method
3.GB 226 metal tube flattening test method
4.GB/T3620.1 titanium and titanium alloy grades and chemical composition
5. GB/T3620.2 chemical composition and allowable deviation of composition of titanium and titanium alloy processed products
II. Technical requirements of ASTM B338 Titanium Tube:
1. The chemical composition of titanium and titanium alloy pipes shall conform to GB/T3620.1. When the buyer retests, the allowable deviation of the chemical composition of mingkun titanium industry shall conform to GB/T3620.2.
2. The allowable deviation of the outer diameter of pipe shall conform to the provisions of table 1.
3. The allowable deviation of pipe wall thickness shall not exceed ±12.5% of its nominal wall thickness, and the allowable deviation of pipe wall thickness shall not apply to the welding seam of titanium welded pipe.
4. The length of the pipe shall comply with the provisions of table 2.
5. The fixed length or multiple length of the pipe shall be within the range of its variable length. The allowable deviation of the fixed length shall be +10mm.
